Gigabyte Z790 EAGLE, Intel Z790, LGA1700, 4xDDR5, ATX/ PN:

Podrobný popis

Od 19.11.2025 do 28.11.2025 (edit : AKCIA predĺžená do vypredania skladových zásob) môžete získať tuto dosku len za 1EUR (cena uvedená bez recyklačneho poplatku) pri nákupe s kompatibilnom procesorom a pamäťou značky G.SKILL. Pre aplikovanie akciovej ceny na dosku kontaktujte svojho obchodnika vo WESTECHu alebo píšte pred fakturáciou na obchodba@westech.sk alebo obchod@westech.cz (záleží kde ste vytvorili objednávku.) - Podmienky akcie, všetky kompatibilné komponenty s uvedenou doskou musia byt na jednej objednávke, teda budú aj na jednej faktúre. - Ponuka platí do len v uvedenom termíne alebo do vypredania skladových zásob - aplikovanie akciovej ceny zabezpečí pred fakturáciou Vás obchodník vo Westech a Westech CZ, alebo píšte na obchod@westech.sk alebo obchod@westech.cz - zľavu sa da aplikovať len za splnenie vsetky.ch podmienok vyššie.

Od 19. listopadu 2025 do 28. listopadu 2025 (edit: AKCE prodloužená do vyprodání skladových zásob) mužete tuto základní desku získat za pouhý 25 CZK (cena nezahrnuje recyklacní poplatek) pri zakoupení kompatibilního procesoru a pameti G.SKILL. Pro aplikování akcní ceny na desku kontaktujte svého obchodníka ve WESTECHu nebo napište pred vystavením faktury na adresu obchodba@westech.sk nebo obchod@westech.cz (v závislosti na tom, kde jste zadali objednávku). - Podmínky akce: všechny komponenty kompatibilní se specifikovanou základní deskou musí být zahrnuty v jedné objednávce, tj. budou na jedné fakture. - Nabídka platí pouze behem stanoveného období nebo do vyprodání zásob. - Akcní cena bude uplatnena pred vystavením faktury vaším obchodním zástupcem ve spolecnostech Westech a Westech CZ, nebo napište na adresu obchod@westech.sk nebo obchod@westech.cz. - Sleva muže být uplatnena pouze v prípade, že jsou splneny všechny výše uvedené podmínky.



Z790 EAGLE

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch:PCIe 5.0x16 Slot with Quick Release Design
Fast Networks:2.5GbE LAN
Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
* 6+6 phases parallel power design"



CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel® Z790 Express Chipset
Memory
14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports, available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

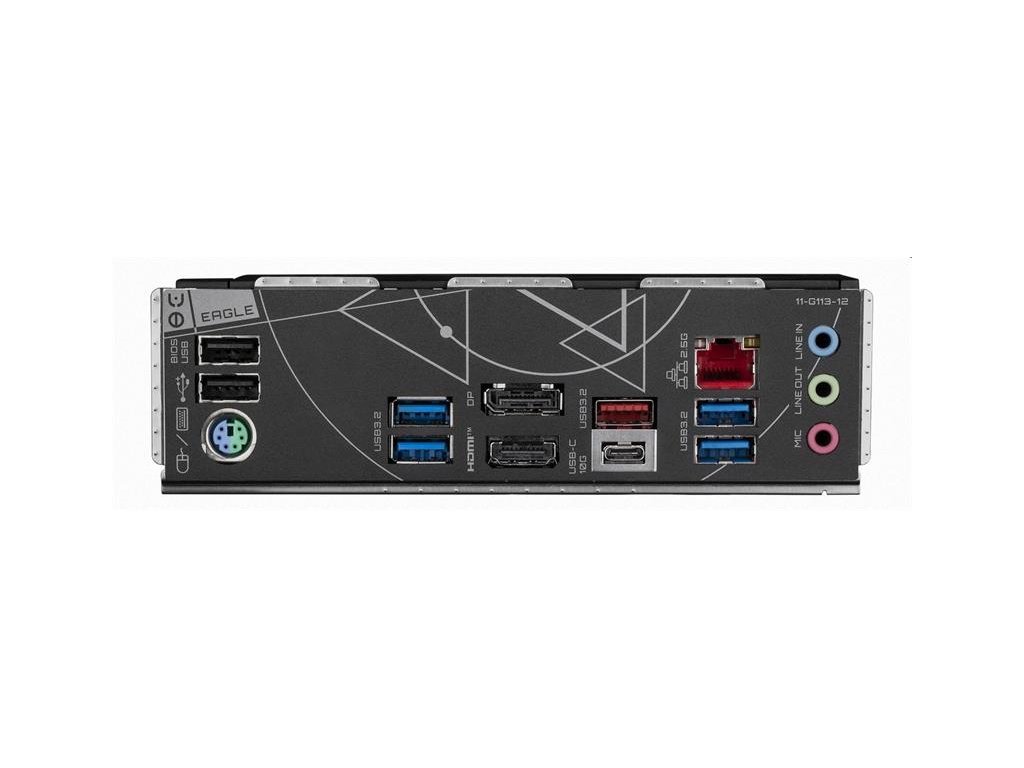

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
